Partially removing the front section of the front wheel arch cover

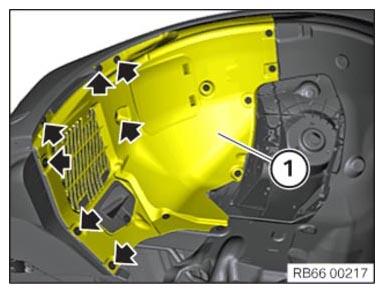

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

NOTE: Description is for left component only. Procedure on the right side is identical.

• Remove screws (arrows).
• Fold the front wheel arch cover (1)  to the side.

Courtesy of BMW OF NORTH AMERICA, INC.
