Removing ACC sensor

Preliminary work

• Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
• Refer to REMOVING FRONT ORNAMENTAL GRILLE .
• Refer to PARTIALLY REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to REMOVING FRONT BUMPER COVER .

• Unlock and disconnect plug connection (1) on the ACC sensor (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

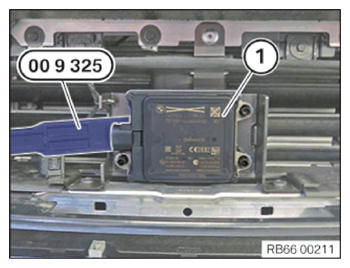

• Release and remove the ACC sensor (1) with the special tool 0 496 569 (00 9 325) .

Courtesy of BMW OF NORTH AMERICA, INC.
