Removing the electrical machine electronics

• All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
• For additional information see:

  61 00... SAFETY INSTRUCTIONS ON HANDLING HYBRID CARS .

• For additional information see:

  61 25... NOTES ON REPAIR OF HIGH-VOLTAGE BATTERY UNIT .

Preliminary work

• Refer to REMOVE FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON RIGHT .
• Refer to DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM .
• Refer to CHECK THAT NO VOLTAGE IS APPLIED .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to BRING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
• Refer to DRAIN THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to REMOVE THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
• Refer to REMOVE LEFT AND RIGHT WIPER ARM .
• Refer to REMOVE THE COWL COVER .
• Refer to REMOVING TRAILING LINK AT SPRING BOLT .
• Refer to REMOVING RIGHT SEALING FRAME .

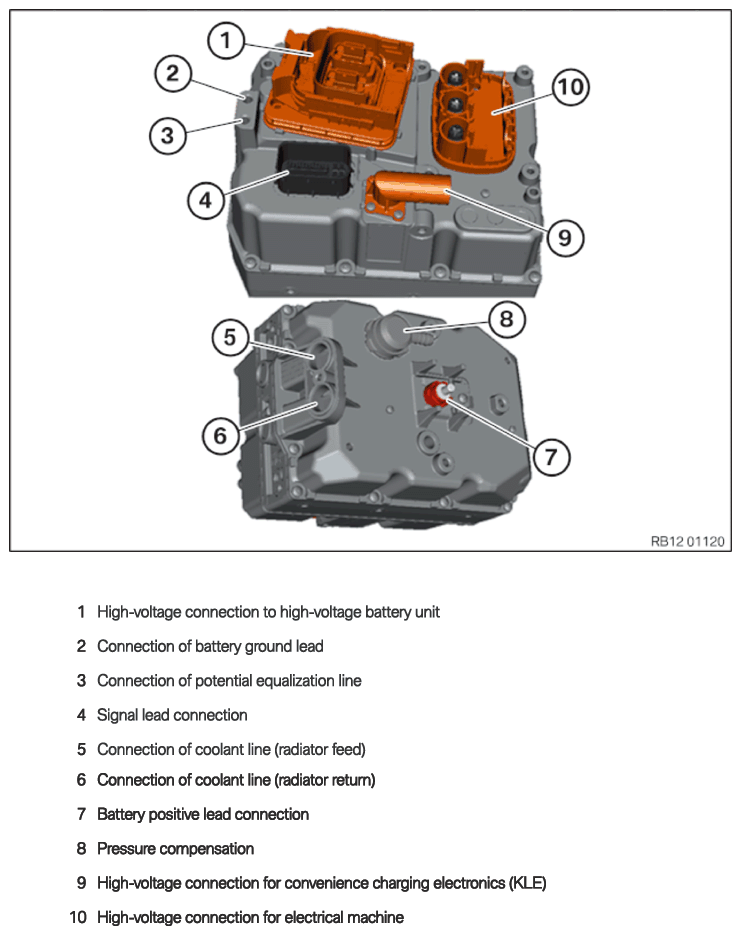

Connection overview for electrical machine electronics (EME)

Courtesy of BMW OF NORTH AMERICA, INC.

• Release screw (1)  of the potential equalization line.
• Release the screw (2)  of the battery earth lead.
• Unclip the battery ground lead.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect signal line connector (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Unclip the high-voltage cable (2)  and unlock and disconnect the connector.
• Release the screws (3)  of the tension relief.

• Unlock and disconnect the connector of the high voltage cable (4)  .
• Detach the rubber grommet of the high-voltage cable (4)  .
• Loosen screws (1)  and remove the tension relief upper section.

• Loosen screws (2)  and pull the connector of the high voltage cable off straight upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Partially removing the front power distribution box positive battery cable

• Loosen the cover (1)  and (2)  at the detents.
• Remove the cover (1)  and (2)  in an upwards direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unscrew the nut (1)  and unclip and feed out the corresponding cable.
• Loosen the screw (2)  and remove the terminal cover from the power distribution box (3)  .
• Loosen the nut (3)  and pull the terminal cover off the power distribution box (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1)  .
• Loosen screw (2)  .

» The power distribution box (3)  can be shifted to install and de-install the electrical machine electronics.

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1)  .
• Pull coolant line (2)  on the electrical machine electronics off.
• Pull coolant line (3)  on the electrical machine electronics off.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the cover for the fresh air inlet

• Unlock the cover (1)  for the fresh air inlet and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1)  .
• Unclip covers (2)  on the units compartment and release the screws underneath.

• Guide electrical machine electronics carefully out of the units compartment.

Courtesy of BMW OF NORTH AMERICA, INC.
