Remove rear mid-range speaker

Preliminary work

• Refer to REMOVING REAR SEAT BENCH .
• Refer to REMOVING REAR SEAT BACKREST .
• Refer to REMOVING BOTH C-PILLAR TRIM PANELS .
• Refer to REMOVING BOTH SEAT BELT FINISHER STRIP ELEMENTS .
• Refer to REMOVING THE STORAGE SHELF (WITH ROLLER SUNBLIND) .

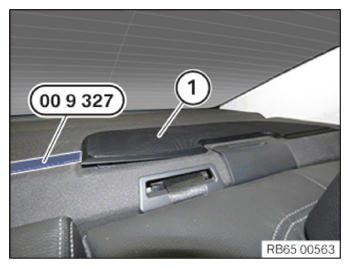

• Remove the cover (1) using the special tool 0 496 571 (00 9 327) .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Place the mid-range speaker (2) on the storage shelf.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Disconnect the connector (1).
• Remove the mid-range speaker (2).

Courtesy of BMW OF NORTH AMERICA, INC.
