Removing the storage shelf (with roller sunblind)

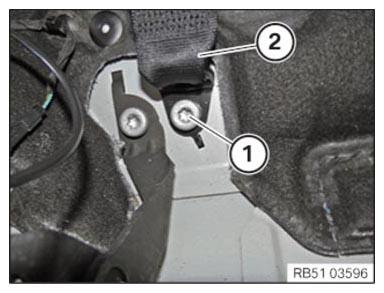

• Loosen screw (1)  .
• Remove end lining (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

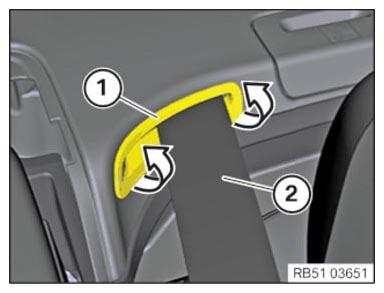

• Unclip the trim (1)  in the direction of the arrow and feed out from safety belt (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

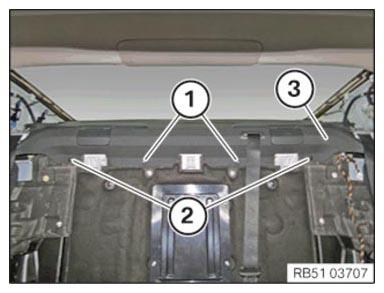

• Loosen nuts (1)  .
• Loosen the expanding rivet (2)  .
• Remove the storage shelf (3)  towards the front and in this process, remove the safety belt.
• If necessary, disconnect plug connections.

  Courtesy of BMW OF NORTH AMERICA, INC.

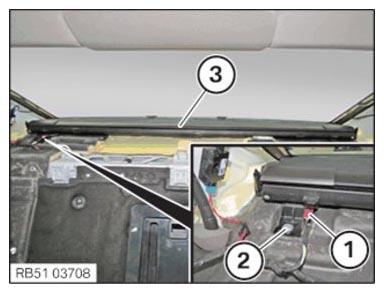

• Disconnect plug connection (1)  .
  NOTE: Perform the steps on the right and left side.
• Loosen screw (2)  .
• Remove the storage shelf with roller sunblind (3)  towards the front.

Courtesy of BMW OF NORTH AMERICA, INC.
