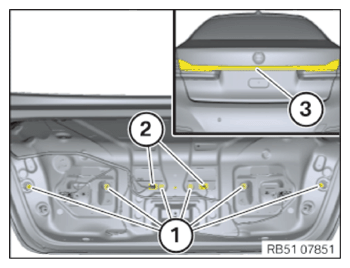

Installing the trunk lid handle

• Attach the tailgate handle strip (3) together with the tail light.
• Tighten nuts (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Trunk lid handle
  Nut	Tightening torque	4.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

Follow-up work

• Refer to INSTALLING THE REAR VIEW CAMERA .
• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .

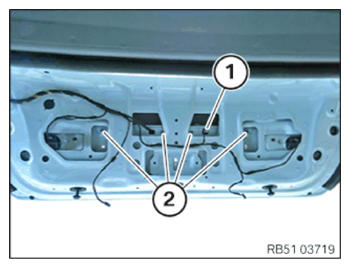

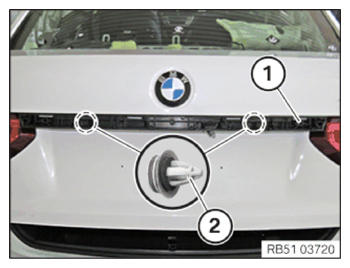

• Version up to 03.19:  Install tailgate handle strip (1) and clip into clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nuts (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Trunk lid handle
  Nut	Tightening torque	4.4 Nm

• Connect the plug connection (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version as of 03.19:  Install tailgate handle strip (3) together with rear light.
• Tighten nuts (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Trunk lid handle
  Nut	Tightening torque	4.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

Follow-up work

• Refer to INSTALLING THE REAR VIEW CAMERA .
• Refer to INSTALLING THE TRIM STRIP TO THE CENTER OF THE TRUNK LID .
• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
