Installing the rear view camera

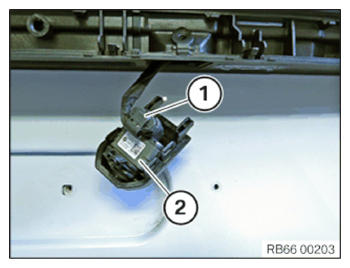

- Insert and connect the connector (1) to the rear view camera (2).
- Up to build date 03/19

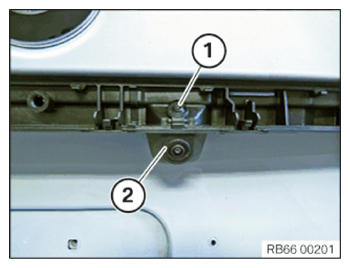

Correctly position the rear view camera (2).
Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONSRFK to trunk lid handle tightening torque 2.8 Nm - Build date 03/19 and later
Replace the bracket (3).
Parts: Holder

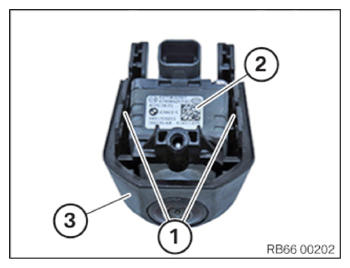

Unlock the detents (1).
Remove rear view camera (2) from holder (3).
- Build date 03/19 and later

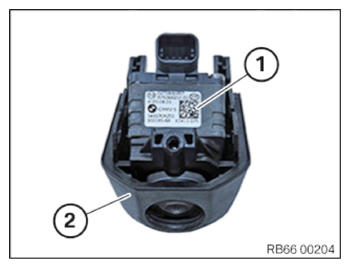

Position the rearview camera (1) correctly and snap it into the holder (2).
- Build date 03/19 and later

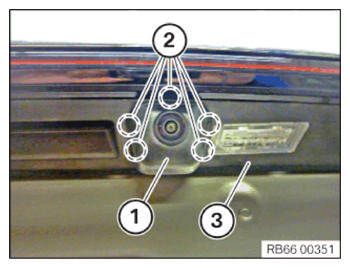

Guide the holder with the rearview camera (1) into the handle strip (3) and snap it in at the locks (2).
Follow-up work
