Removing the holder for the right-hand DME control unit

Precondition

• Ignition is switched off.

Preliminary work

• Refer to REMOVING COVER FOR THE RIGHT DME CONTROL UNIT .
• Refer to REMOVING THE DME CONTROL UNIT FOR CYLINDERS 1 TO 4 .
• Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .

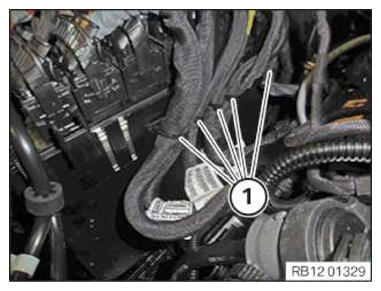

• Disconnect all cables (1)  from the holder for the DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

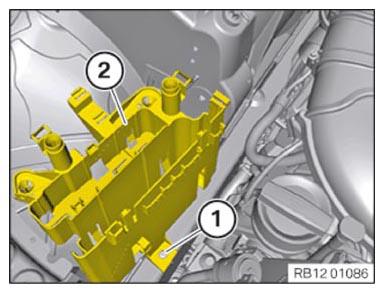

• Loosen screw (1)  .
• Guide the holder (2)  for the DME control unit on the right out to the top and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
