Securing the tension strut on the left and right to the front subframe

NOTE: Perform the steps on the right and left side.

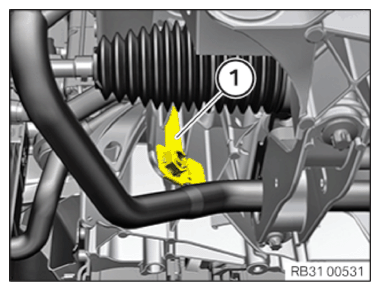

Replace the clip nut (1) .
Parts: Clip nut
Fasten the clip nut (1) on the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

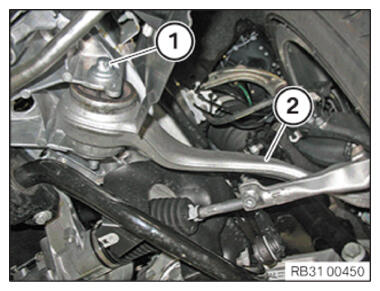

Position the tension strut (2) on the front subframe.
Replace the screw (1) .
Parts: Screws

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the screw (1) in NORMAL POSITION .

TIGHTENING TORQUE SPECIFICATIONS

Tension strut to front axle support
M14 Replace flat nuts and screw. Tighten in normal position.	Joining torque	85 Nm
	Angle of rotation	180°
