Securing the bottom wishbone on the left and right to the front subframe
NOTE:
Perform the steps on the right and left side.
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

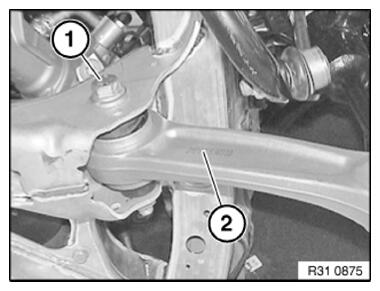

- Position the bottom wishbone (2) on the front subframe.
- Replace the bolt (1)
and the nut.
Parts: Bolt, nut
- Tighten the screw (1) in Tighten the screw connection in the NORMAL POSITION . .
TIGHTENING TORQUE SPECIFICATIONS
| Lower wishbone to front axle carrier | ||
|---|---|---|
| M14 Replace screw and nut. Tighten in normal position. |
Joining torque | 85 Nm |
| Angle of rotation | 180° | |
