Remove left throttle valve assembly
Preliminary work
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING BOTH FRONT-END STRUTS .
- Refer to REMOVING FRONT CROSS CONNECTION (FRONT-END STRUT REMOVED) .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to RELEASING THE LEFT CHARGE AIR LINE FROM THE TURBOCHARGER .
- Refer to REMOVING THE LEFT UNFILTERED-AIR DUCT .
- Refer to REMOVING FAN COWL .
- Refer to DRAINING THE COOLANT FOR THE CHARGE AIR COOLER .
- Refer to REMOVING LEFT CHARGE AIR COOLER .

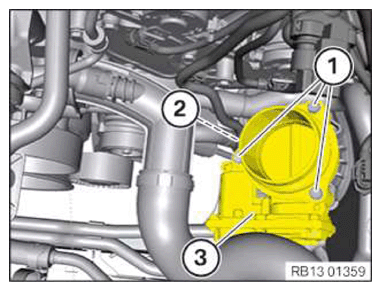

- Loosen screws (1).
- Slightly raise the throttle body (3) until the connector (2) is accessible.
- Unlock connector (2) and detach.
- Remove the throttle bodies (3).
