Installing right high pressure pump
Precondition
- Ignition is switched off.
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
WARNING:
Contact with hazardous fluids.
Hazardous to health!
Hazardous to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
CAUTION:
On releasing high pressure line, fuel may emerge at high speed.
Injury hazard!
Injury hazard!
- Wear suitable personal protective equipment.
- Before performing any installation work, allow cooling system to cool down to less than 40°C.
- Note warnings on cylinder head cover.
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
- Refer to REMOVING TRAILING LINK AT SPRING BOLT .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
- Refer to REMOVING LEFT THROTTLE VALVE ASSEMBLY .
- Refer to PARTIALLY LOOSENING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
- Refer to REMOVING THE RIGHT THROTTLE BODY .
- Refer to PARTIALLY LOOSENING THE RIGHT-HAND CHARGE AIR COOLER .
- Refer to REMOVING THE RIGHT-HAND VENTILATION LINE .
- Refer to REMOVING THE ENGINE VENTILATION LINE FROM THE INTAKE SYSTEM .
- Refer to REMOVING THE TANK VENT LINE .
- Refer to REMOVING THE INTAKE PLENUM .
- Refer to REMOVING IGNITION COILS .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING THE RIGHT HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
TECHNICAL INFORMATION
The high pressure pump is preloaded by the piston spring and must be removed by alternately unscrewing the screws without tilting.
Before installing the high pressure pump, the cam of the high pressure pump drive must be turned to bottom dead center.
If necessary, turn the engine in the direction of engine rotation on the central bolt of the crankshaft, otherwise there is a risk of piston breakage of the high pressure pump.
The high pressure pump is preloaded by the piston spring and must be removed by alternately unscrewing the screws without tilting.
Before installing the high pressure pump, the cam of the high pressure pump drive must be turned to bottom dead center.
If necessary, turn the engine in the direction of engine rotation on the central bolt of the crankshaft, otherwise there is a risk of piston breakage of the high pressure pump.
- Place the depth gauge (1) flat onto the high pressure pump flange.
- Turn the engine on the central bolt in the direction of engine rotation until the BDC position of the camshaft is reached on the depth gauge (1).
- Replace the seal on the high pressure pump.
Parts : Gasket

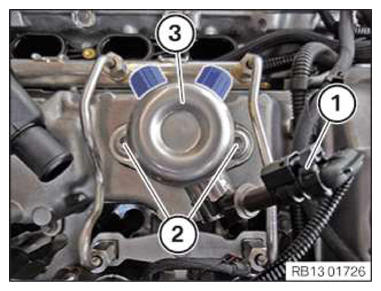

- Install the high pressure pump (3).
- Replace screws (2).
Parts : Screws
- Fasten the screws (2) of the high pressure pump (3) and tighten in alternating order in 90° increments.TIGHTENING TORQUE SPECIFICATIONS
High-pressure pump to cylinder head M6x20
Replace screw.Tightening torque 12 Nm Angle of rotation 90° - Connect connectors (1) and lock audibly.
