Remove the top end cover
Preliminary work
- Refer to REMOVING THE COMPLETE FRONT AXLE WITH THE ENGINE AND TRANSMISSION .
- Refer to PARTIALLY LOOSENING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to REMOVING THE RIGHT THROTTLE BODY .
- Refer to PARTIALLY LOOSENING THE RIGHT-HAND CHARGE AIR COOLER .
- Refer to REMOVING THE ENGINE VENTILATION LINE FROM THE INTAKE SYSTEM .
- Refer to REMOVING THE TANK VENT LINE .
- Refer to REMOVING THE INTAKE PLENUM .
- Refer to REMOVING THE INTERMEDIATE FLANGE OF THE INTAKE PLENUM .
- Refer to REMOVING COOLANT PIPES .
NOTE:

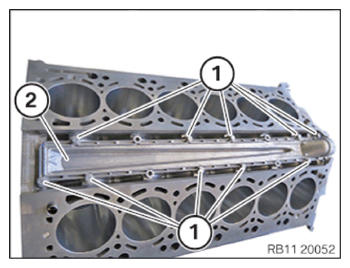

To provide a better overview: Illustration of surrounding parts removed.
- Unscrew the bolts (1) on the end cover (2).
- Remove the end cover (2) towards the rear.
