Installing The Left Front Side Panel

• Close front door.
• Install the side panel (1)  towards the vehicle at an angle, shifting from the rear to the front.

  Position the hooks (2)  in the guide at the headlights (3)  .

  Position the side panel (1)  on the vehicle around the A-pillar.

• Screw in all screws on the side panel (1)  until it is just about possible to shift the side panel (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The gap dimensions form the basis for these repair instructions and must be observed without fail.
  For additional information see: 41 00... Gap dimensions for body
• Adjust gap dimensions.

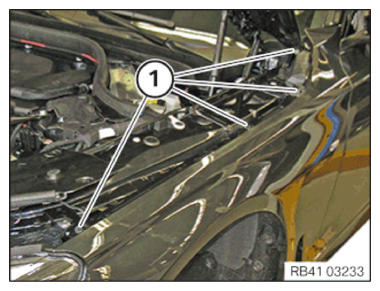

• Tighten the screws (1)  .

  TIGHTENING TORQUE SPECIFICATIONS

  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1)  .

  TIGHTENING TORQUE SPECIFICATIONS

  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1)  .

  TIGHTENING TORQUE SPECIFICATIONS

  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1)  .

  TIGHTENING TORQUE SPECIFICATIONS

  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Open the front door.

  Tighten down screw (1)  .

  Press onto the signaled area of the seal (3)  and engage the hook (2)  .

  TIGHTENING TORQUE SPECIFICATIONS

  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the shaped part (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to PARTLY INSTALLING THE FRONT BUMPER COVER .
• Refer to INSTALLING THE DOOR SILL TRIM PANEL .
• Refer to INSTALL THE AIR DUCT ON THE INNER SIDE PANEL .
• Refer to INSTALLING THE COVER HOUSING FOR THE FRONT HIGH-VOLTAGE CHARGING SOCKET .
• Refer to INSTALL THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to MOUNTING THE WHEEL .
• Refer to INSTALL THE TRIM ON THE SIDE PANEL .
• Refer to INSTALLING THE MOUNT OF THE HOOD SEAL .
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to PARTIALLY INSTALL THE COVER OF THE ENGINE COMPARTMENT AT THE FRONT LEFT .
• Refer to RESETTING THE TIRE PRESSURE MONITOR .
• Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
• Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
