Partly installing the front bumper cover

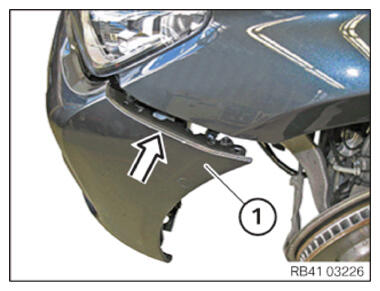

• Install the bumper cover (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.

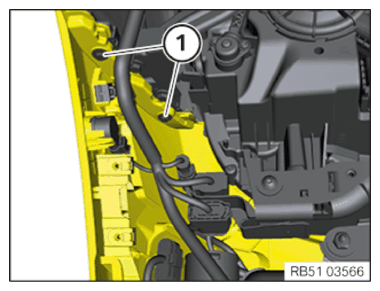

• Tighten the screws (1)  .

TIGHTENING TORQUE SPECIFICATIONS

Bumper cover on side wall
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
