Removing trim on the side bumper panel
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE DECORATIVE FRONT GRILL .
- Refer to PARTIALLY REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to REMOVING FRONT BUMPER COVER .
- Refer to REMOVING FOG LAMP HOLDERS .
- Refer to REMOVING THE ORNAMENTAL GRILLE OF THE BUMPER COVER LATERALLY .

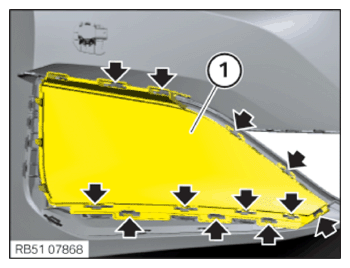

- Release the trim (1) at the detents (arrows) and remove.
