Remove fog lamp holders

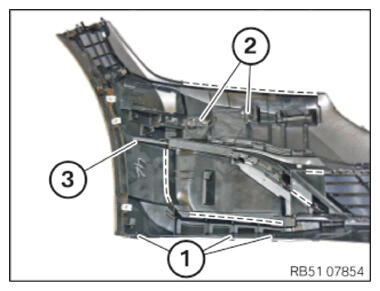

Loosen the expanding rivet (1) .
Disconnect the plug connectors (2) and dismount the cable harness.
Release the fog lamp holders (3) from the detents along the dashed line and lift off in an upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.
