Removing and installing LED for luggage compartment (left or right) (330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove capping TRIM PANEL .

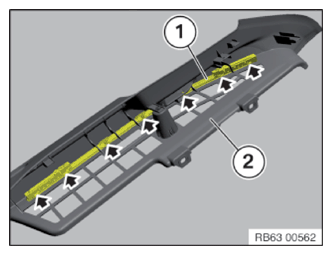

Release clamps and press LED conductor (1) out of capping trim panel (2).
Installation note:

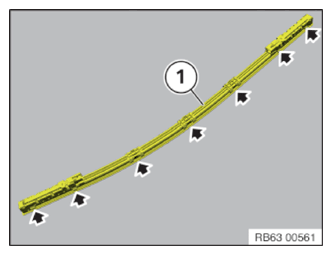

Make sure the fibre-optic conductor (1) latches correctly into the capping trim panel (2).
Installation note:
Clamps on the LED module (1) must not be damaged or missing.
