Removing and installing/replacing left (right) capping trim panel (330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020
00 9 325

The operation is described for the left-hand side; proceed in the same way for the right-hand side.

Remove front storage shelf

Fold rear seat backrest forward

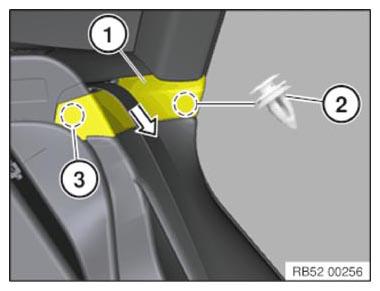

Unclip cover (1) at clip (2).

Carefully release cover (1) on retaining lug (3) and remove in direction of arrow.

G10177141

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

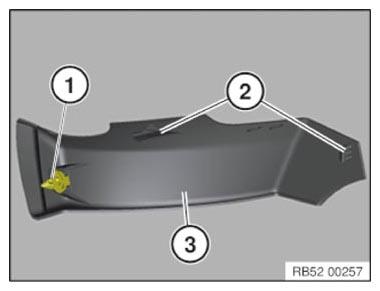

Clip (1) and retaining lugs (2) on cover (3) must not be missing or damaged.

G10177142

Courtesy of BMW OF NORTH AMERICA, INC.

Pry out luggage compartment lights (1) with special tool 64 1 020.

Disconnect associated plug connection and remove luggage compartment lights (1).

G10177143

Courtesy of BMW OF NORTH AMERICA, INC.

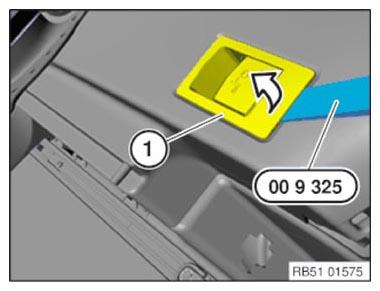

Pry out cargo release (1) using special tool 00 9 325.

Release associated Bowden cable and remove cargo release (1).

G10177144

Courtesy of BMW OF NORTH AMERICA, INC.

Version with backrest remote release:

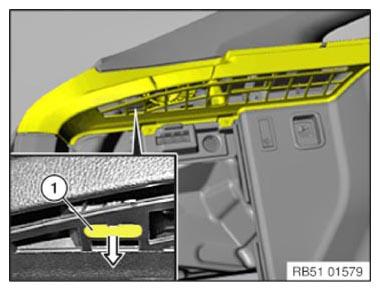

Unlock catch (1) in direction of arrow with suitable tool.

G10177145

Courtesy of BMW OF NORTH AMERICA, INC.

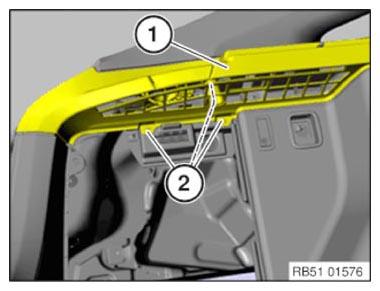

Release trim panel shoulder (1) at screws (2).

G10177146

Courtesy of BMW OF NORTH AMERICA, INC.

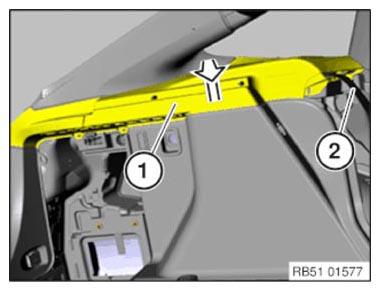

Release trim panel shoulder (1) in direction of arrow.

Feed out seat belt (2) from trim panel shoulder (1) and remove trim panel shoulder (1).

G10177147

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, swap over led for LUGGAGE COMPARTMENT .
