Removing and installing/replacing left or right lashing rail in luggage compartment (330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove tail panel TOP COVER .
- Remove LUGGAGE COMPARTMENT WELL .

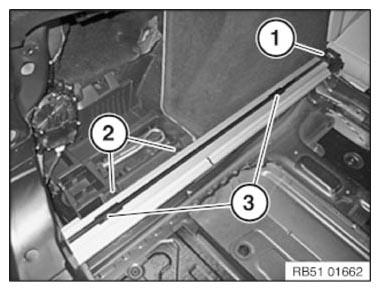

Unclip cover (1) and release expanding rivets (2).
Release screws (3).
Tightening torque 51 75 5AZ

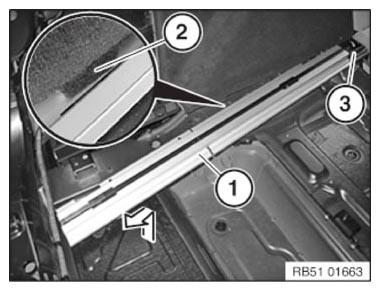

Unthread lashing rail (1) out of tabs (2) from luggage compartment wheel arch panel.
Release lashing rail (1) in direction of arrow out of guide (3) and remove.
