Removing and installing/replacing top cover on tail panel (Variant 2) (330i xDrive Wagon, 328d xDrive Wagon)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 325
Necessary preliminary tasks:
- Remove left flap in luggage compartment TRIM PANEL
- Remove right side wall luggage compartment TRIM PANEL

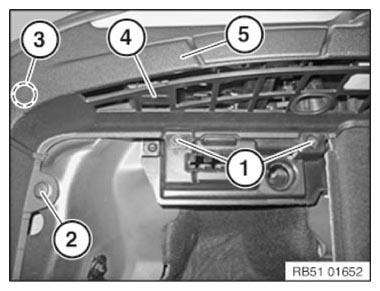

Release screws (1) and expanding rivet (2) at trim panel shoulder (5).
Unclip trim panel shoulder (5) at clamp (3).
Only on version with backrest remote unlocking:
Unlock fuse (4) using screwdriver.
Also perform this operation on the right side.

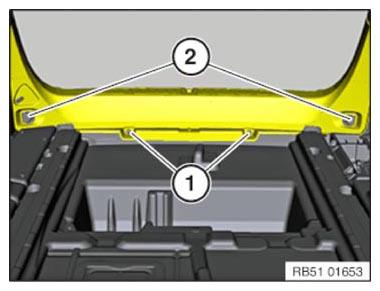

Release screws (1).
Remove lashing eyes (2). Tightening torque 51 47 1AZ

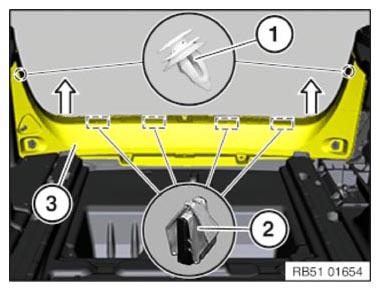

Release clips (1) and clamps (2) with special tool 00 9 325.
Remove trim (3) in direction of arrow.
Clips (1) and clamps (2) must not be damaged or missing.
Replacement:
Replace clips (1) and clamps (2).
