Removing and installing/replacing left luggage compartment wheel arch trim (330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left shoulder TRIM PANEL .

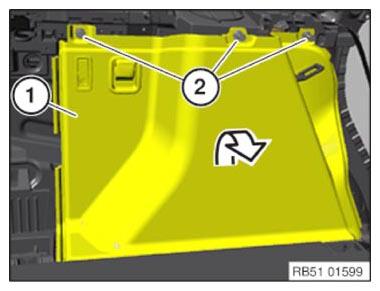

Release trim panel (1) at expanding rivets (2).
Remove trim panel in direction of arrow.
Replacement:
Remount 12 V POWER SOCKET .
