Removing and installing (replacing) left (Xenon) headlight (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon lighting system:
Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.

Necessary preliminary work:

Remove front BUMPER PANEL .

G14171798

Courtesy of BMW OF NORTH AMERICA, INC.

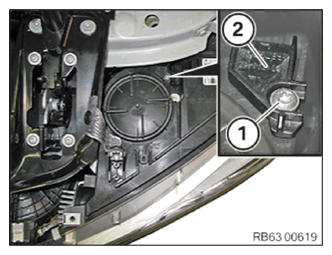

NOTE: If the retaining clip (2) is present, the central connector on the headlight cannot be disconnected!

Release screw (1) and remove retaining clip (2) if necessary.

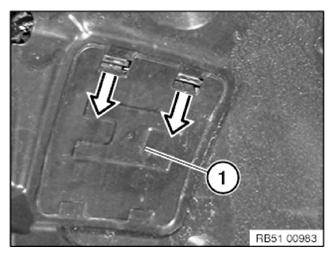

Unlock and remove cover (1).

G14171799

Courtesy of BMW OF NORTH AMERICA, INC.

G14171800

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Work shown on the F30 by way of example, deviations in detail are possible in other models.

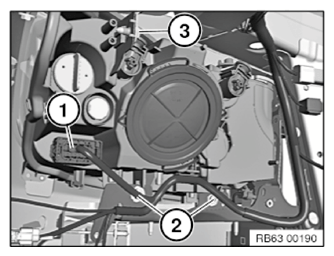

Unlock plug connection (1) and disconnect.

Unfasten screws (2).

Tightening torque 63 12 1AZ .

Release screw (3).

Tightening torque 63 12 1AZ .

G14171801

Courtesy of BMW OF NORTH AMERICA, INC.

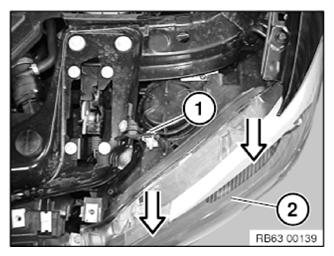

Release screw (1).

Tightening torque 63 12 1AZ .

Carefully remove headlight (2) in direction of arrow.

Installation note:

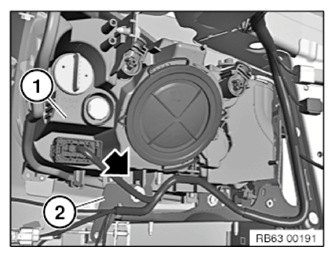

NOTE: Correctly install headlight (1) relative to holder (2).
Adjust HEADLIGHT .

G14171802

Courtesy of BMW OF NORTH AMERICA, INC.

G14171803

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

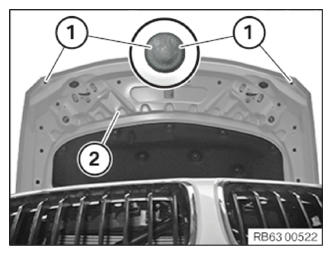

NOTE: Rubber plugs (1) in engine compartment lid (2) must not be missing or damaged.
No cavity preservation may emerge from the rubber plugs (1).

Replacement:

US version: Check blocking at HORIZONTAL POSITION .
Remount XENON CONTROL UNIT .
Remount IGNITION DEVICE WITH BULB. .
Remount HEADLIGHT DRIVER MODULE .
Remount daytime driving lights LED MODULE .
