Replacing ignition unit for left xenon headlight (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Follow NOTES for handling light bulbs (exterior lights).
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Follow NOTES for handling light bulbs (exterior lights).

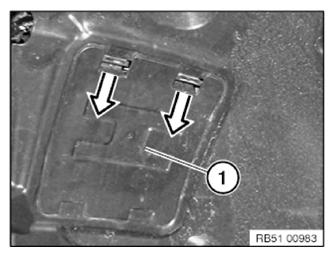

Unlock and remove cover (1).
NOTE:
Work shown on the F20 by way of example, deviations in detail are possible in other models.

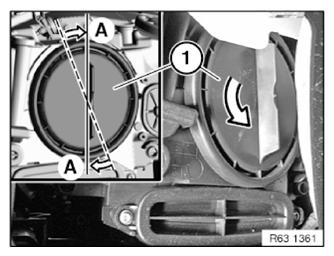

Turn protective cap (1) to the left and remove.
Attention !
Risk of damage due to moisture penetration !
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with INSTRUCTIONS for replacing the protective cap.
US version: Check blocking at HORIZONTAL POSITION
Protective cap (1) must lock correctly!
Turn the protective cap (1) to the right to end stop (A)!
Disconnect plug connection (1) on ignition device with bulb (2).
Remove ignition device with bulb (2) in direction of arrow.
Recommendation:
Check HEADLIGHT ADJUSTMENT , correct if necessary.
