Removing and installing/replacing both windscreen wiper arms (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 61 6 060
IMPORTANT:
After installation check setting dimension and contact angle of the wiper arm. Refer to CHECKING/ADJUSTING CONTACT ANGLE OF WINDSCREEN WIPER ARMS ON WINDSCREEN or 61 61... CHECKING CONTACT ANGLE OF WIPER ON LEFT OR RIGHT (SERIES P L7) .

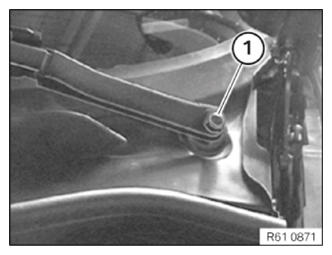

Remove protective cap (1).
Release nut underneath.
Tightening torque 61 61 2AZ .
IMPORTANT:
Risk of breakage!
Do not bend wiper arm when removing.
Do not bend wiper arm when removing.

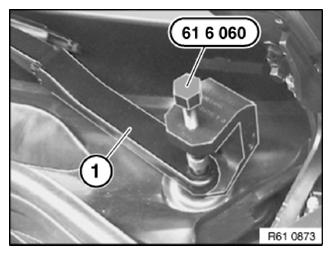

Detach windscreen wiper arm with special tool 61 6 060.
