61 61... Checking contact angle of wiper on left or right (series P L7) (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 61 6 100
A correctly adjusted contact angle of the wiper arms is important for the wiping quality. Consult the vehicle-specific repair instructions for adjustments

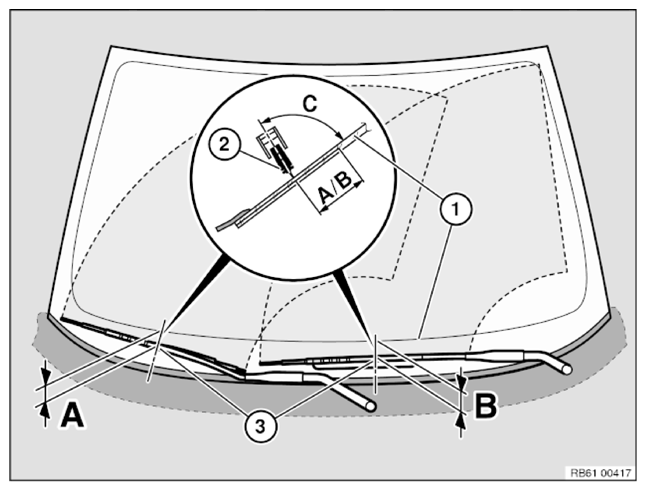

A/B = Distance between black print edge (1) and wiper blade (2).
NOTE:
Measurement is done at the height of the fixture (3) of the wiper blades.
C= Contact angle between wiper blade center plane and windscreen
When using special tool 61 6 100, check the scale value according to the following table.
For right hand drive vehicles, change the preceding sign of the scale values.
- Left hand drive vehicle scale range 0 to -10
- Right hand drive vehicle scale range 0 to +10
| Model | Contact angle (C) on windscreen wiper arm | Scale value on the special tool (left hand drive vehicle) | Setting dimension (A, B) on windscreen wiper arm | |||
|---|---|---|---|---|---|---|
| Front front passenger side | Driver's side | Front front passenger side | Driver's side | Front front passenger side | Driver's side | |
| F20/F21/F22/F23 | 85.0° ±2° | 85.6° ±2° | -5 ±3 | -5 ±3 | 36 mm ±3 mm | 34 mm ±3 mm |
| F30/F31/F35/F80 | 85.5° ±2° | 85.5° ±2° | -5 ±3 | -5 ±3 | 35 mm ±3 mm | 45 mm ±3 mm |
| F32/F36/F33/F82/F83 | 85.8° ±2° | 85.6° ±2° | -5 ±3 | -5 ±3 | 49 mm ±3 mm | 64 mm ±3 mm |
| F34 | 84.0° ±2° | 84.0° ±2° | -5 ±3 | -5 ±3 | 40 mm ±3 mm | 32 mm ±3 mm |
