Installing the wishbone
- Position the wishbone (2) on the swivel bearing (3) .
- Push the output shaft to the side slightly.
- Replace nut (1)
.
Parts: Nut
- Tighten nut (1) . If necessary, counter support at the Torx socket.
TIGHTENING TORQUE SPECIFICATION
| Wishbone to swivel bearing | ||
|---|---|---|
| M14 Replace nut. |
tightening torque | 175 Nm |
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

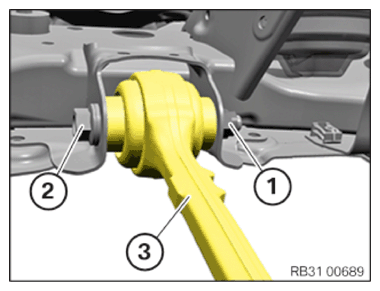

- Position the wishbone (3) on the front subframe.
- Replace screw (2)
and nut (1)
.
Parts: Screw, nut
- Position nut (1)
and tighten screw (2)
hand-tight.
The screw connection is tightened with the torque wrench later in the NORMAL POSITION .
Follow-up work
- Refer to FASTENING THE RIDE HEIGHT SENSOR ON THE BOTTOM WISHBONE .
- Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
- Refer to MEASURING THE RIDE HEIGHT OF THE FRONT AXLE AND ADJUSTING THE NORMAL POSITION .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE WISHBONE ON THE FRONT SUBFRAME .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to PERFORM CHASSIS ALIGNMENT CHECK .
