Tightening the screw connection of the wishbone on the front subframe
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

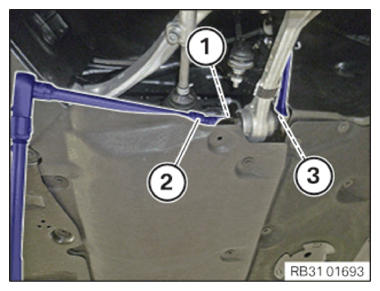

- Slacken the screw (1) with the standard tool (2) by a turn and tighten it. In doing so, counter support at the nut (3).TIGHTENING TORQUE SPECIFICATION
Wishbone to front axle support M12 Replace screw and nut. Tighten in normal position! Tightening via screw. Tightening torque 68 Nm Angle of rotation 180°
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

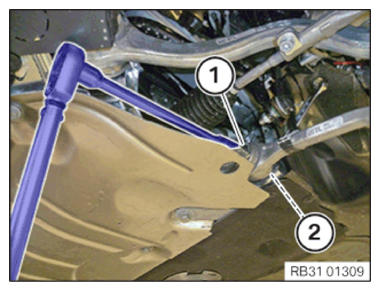

- Slacken screw (1) by one turn. In doing so, counter support at the nut (2).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
| Wishbone to front axle support | ||
| M12 Replace screw and nut. Tighten in normal position! Tightening via screw. |
Tightening torque | 68 Nm |
| Angle of rotation | 180° | |
