Installing the radial shaft seal (rotor shaft)

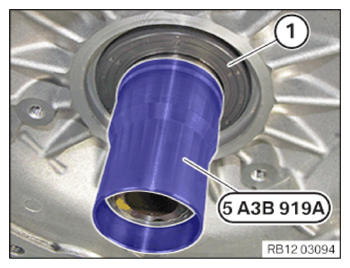

• Position the sleeve 5 A3B 919  part A on the rotor shaft all the way to the stop.
• Oil the inside and outside of radial shaft seal (1) lightly.
• Push the radial shaft seal (1) over the sleeve 5 A3B 919 part A and position it as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

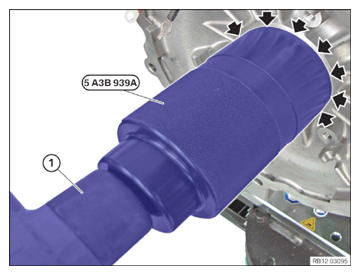

• Using a plastic hammer (1) and mandrel 5 A3B 939  part A, strike radial shaft seal up to the stop.
• Mandrel 5 A3B 939  part A must rest around the housing without any gaps.
• If necessary, strike mandrel 5 A3B 939  part A again with the plastic hammer.

  Courtesy of BMW OF NORTH AMERICA, INC.

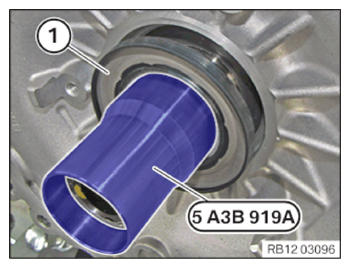

• Oil the inside and outside of dust guard ring (1) lightly.
• Push the dust guard ring (1) over the sleeve 5 A3B 919 part A and position it as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

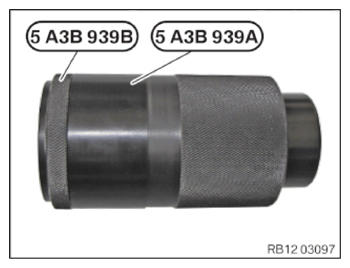

• Mount part B on part A of mandrel 5 A3B 939  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Using plastic hammer (1) and mandrel 5 A3B 939  part A and part B, strike the dust guard ring up to the stop.
• Mandrel 5 A3B 939  part B must rest around the housing without any gaps.
• If necessary, strike mandrel 5 A3B 939  part A and part B again with the plastic hammer.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BRUSH MODULE .
• Refer to INSTALLING THE LID OF THE BRUSH MODULE .
• Refer to EXECUTING FUNCTIONAL CHECKING BEFORE RE-INSTALLATION .
• Refer to REMOVING THE PRESSURE COMPENSATION ELEMENT FROM EME LID .
• Refer to REMOVING THE PRESSURE COMPENSATION ELEMENT FROM THE LID OF THE BRUSH COMPARTMENT .
• Refer to PERFORMING EOS TEST .
• Refer to STICKING THE PRESSURE COMPENSATION ELEMENT ON THE LID OF THE BRUSH COMPARTMENT .
• Refer to STICKING THE PRESSURE COMPENSATION ELEMENT ON THE EME LID .
• Refer to REMOVING THE ELECTRICAL DRIVE UNIT FROM THE ASSEMBLY JIG .
• Refer to INSTALLING REAR SOUND INSULATION .
• Refer to INSTALLING THE ELECTRIC DRIVE UNIT IN THE REAR AXLE SUPPORT .
• Refer to INSTALLING THE TOP SOUND INSULATION .
• Refer to INSTALLING THE WIRING HARNESS MOUNTING .
• Refer to INSTALLING THE RIGHT POTENTIAL EQUALIZATION LINE .
• Refer to REMOVING THE MOBILE LIFTING TABLE .
• Refer to INSTALLING COVERS AT FRONT BOTTOM ON LEFT AN RIGHT SIDES .
• Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ONTO THE WHEEL BEARING .
• Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to MEASURING THE RIDE HEIGHT OF THE REAR AXLE AND SETTING THE NORMAL POSITION .
• Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
• Refer to DELETING FAULT MEMORY .
• Refer to CALIBRATING AND TEACHING IN THE ROTOR POSITION SENSOR .
