Install the input flange of the front differential
NOTE:
TECHNICAL INFORMATION
Keep the connection on the bevel drive pinion of the front axle differential clean and free of oil and grease.
Keep the connection on the bevel drive pinion of the front axle differential clean and free of oil and grease.

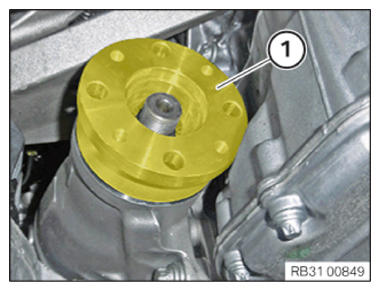

- Replace drive flange (1).
Parts: Drive flange
- Position drive flange (1) on the front axle differential and strike it up to the stop of the drive shaft using a rubber mallet.

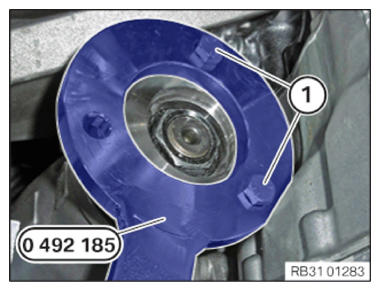

- Position special tool 0 492 185 (33 2 140) with one screw (M8x30) (1) on the drive flange.
- Turn screw (M8x30) (2) through the bore on the drive flange with nut (M8) (3) until hand-tight.
- Tighten screw (M8x30) (1) hand-tight.
- Replace nut (4).
Parts: Nut
- Tighten nut (4). Counter support special tool 0 492 185 (33 2 140) while doing this .
TIGHTENING TORQUE SPECIFICATION
| Drive flange to front axle transmission | ||
|---|---|---|
| Replace collar nut. | Tightening torque | 165 Nm |
- Loosen screws (1). Remove nut (M8) in the process.
- Remove the special tool 0 492 185 (33 2 140) .
Follow-up work
- Refer to INSTALLING FRONT PROPELLER SHAFT AT THE FRONT AXLE DIFFERENTIAL .
- Refer to INSTALLING THE TRANSFER BOX (ATC 13-1) .
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
- Refer to INSTALLING THE HEAT SHIELD .
- Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
- Refer to CHECKING/TOPPING UP THE TRANSFER BOX OIL (ACTIVE TORQUE CONTROL 13-1) .
- Refer to TOPPING UP/CHECKING FRONT AXLE DIFFERENTIAL OIL .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
