Installing the airbag sensor on the B-pillar

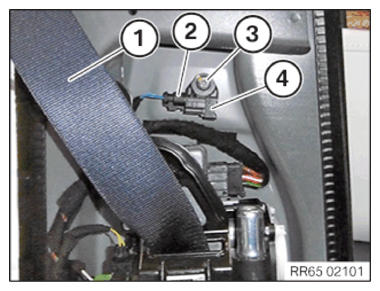

- Push the safety belt (1) somewhat to the side.
- Position the airbag sensor (4) on the B-pillar.
- Tighten down screw (3).
TIGHTENING TORQUE SPECIFICATION
| Airbag sensor, B-pillar | ||
|---|---|---|
| M6 screw | tightening torque | 8 Nm |
- Connect connectors (2) and lock.
- Correctly position the safety belt (1).
Follow-up work
- Refer to INSTALLING THE LOWER B-PILLAR TRIM PANEL .
- Refer to INSTALLING B-PILLAR TRIM PANEL .
- Refer to INSTALLING THE DOOR SILL COVER STRIP .
- Refer to INSTALLING THE REAR DOOR SILL COVER STRIP .
- Refer to INSTALLING THE REAR SEAT .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
