Installing the servomotor

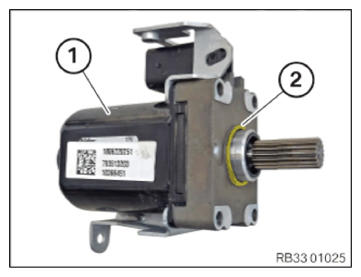

- Check O-ring (2) for servomotor (1) and, if necessary, replace it.
NOTE:
TECHNICAL INFORMATION
The gearing of servomotor and idler gear must be checked and the positive locking ensured.
The gearing of servomotor and idler gear must be checked and the positive locking ensured.

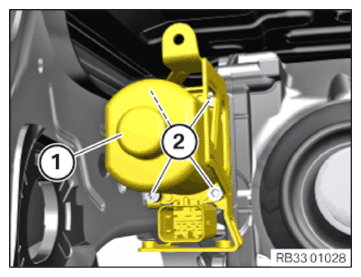

- Guide in servomotor (1) with the holder and position.
The servomotor (1) must be flush against the cover of the rear differential.
- Replace screws (2).
Parts: Screws
- Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATION
| Servomotor on rear axle differential | ||
| M6 Replace screws. |
tightening torque | 9 Nm |
Follow-up work
