Install the cover of the right camber control arm
Install the cover of the camber control arm
- The installation location and direction of installation (1) must be noted.
Direction of installation (1):
The arrow on the cover points in the driving direction.
Installation location:
- L = left
- R = right

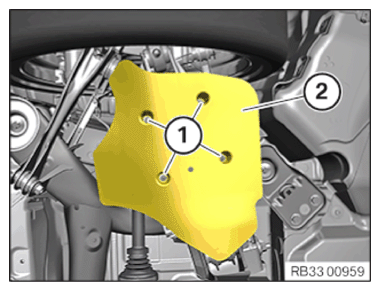

- Position cover (2) of the camber link on the camber link.
- Replace nuts (1).
Parts: Nuts
- Tighten nuts (1).
TIGHTENING TORQUE SPECIFICATION
| Cover to camber control arm | ||
| M6 Replace nuts. |
tightening torque | 6 Nm |
