Installing the tension cables

NOTE: Description is for left component only. Procedure on the right side is identical.

CAUTION: Folding up of convertible top through loss of pressure in hydraulic cylinders .
Injury hazard! Injury hazard by trapping!

When carrying out all repair work, secure soft top and soft top compartment lid with a suitable support tool against collapsing. Ensure soft top is supported in the middle.

G15339769

Courtesy of BMW OF NORTH AMERICA, INC.

Bring the convertible top (1) in the half opened position.
Secure the convertible top (1) from collapsing by using the support 2 452 010 if necessary.
Position the bolt (2) using the tension cable (3).
Fasten the retaining clip (1).

G15339868

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in the tension cable (2) at the convertible top linkage (3).
Fold the convertible top fabric (1) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the luggage strap (1) on the convertible top fabric (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.
Hook the convertible top fabric (1) at the retaining tabs (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

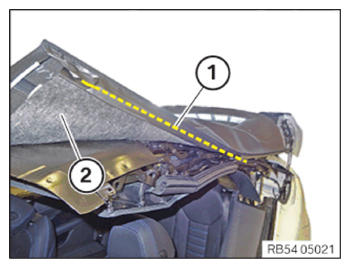

Position the convertible top fabric (1) on the convertible top bow and fold it downwards in arrow direction.
Fasten the convertible top fabric on the convertible top bow using the edge stripping (2).
If necessary, move the convertible top to the half open position to make it easier to attach.

G15339791

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

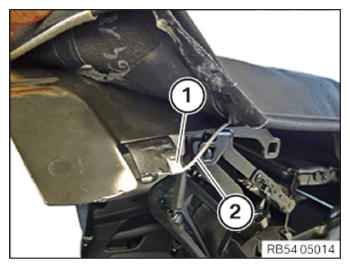

Hook in the tension cable (2).
Position the retaining clip (1).

G15339773

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

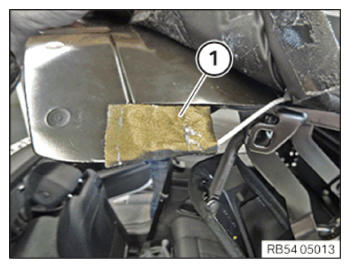

Replace the adhesive tape (1).
Parts: Adhesive tape
Fasten the adhesive tape (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the double-sided adhesive tape in the area (1).
Parts: Double-sided adhesive tape

Courtesy of BMW OF NORTH AMERICA, INC.
Position the convertible top fabric (1) in arrow direction on the convertible top bow.

G15339799

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the adhesive tape (1).
Parts: Adhesive tape
Fasten the adhesive tape (1) on the left and right to the convertible top bow (2).

G15339800

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE SEAL FOR THE CONVERTIBLE TOP BRACE .
Refer to INSTALLING THE SEAL FOR THE WINDSHIELD PANEL .
Refer to ADJUSTING DOOR WINDOW GLASS .
Refer to ADJUSTING THE REAR SIDE WINDOW .
