Installing the seal from the windshield panel
- Place the seal on the windshield panel (2) on the body.

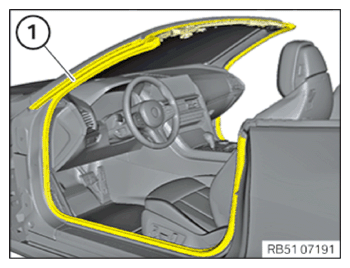

- Make sure the seal on the windshield panel is fitted properly (1) on all adjacent parts.

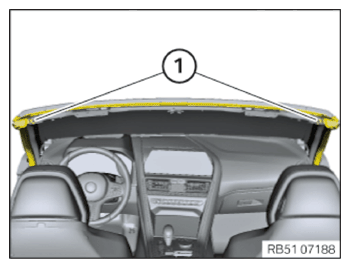

- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Seal on windshield panel Oval-head screw Tightening torque 2.5 Nm
Follow-up work
- Refer to INSTALLING THE TRIM STRIP ON THE A-PILLAR .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to REMOVING THE TRIM ON THE TOP COWL PANEL .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT VANITY MIRROR LIGHT .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to INSTALLING THE SUN VISORS AND COUNTER SUPPORT ON THE LEFT AND RIGHT .
