Install A-pillar trim panel, left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

Install A-pillar trim panel

TIGHTENING TORQUE SPECIFICATION

A-pillar trim panel to body
Sheet metal screw 4.8x38	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install microphone

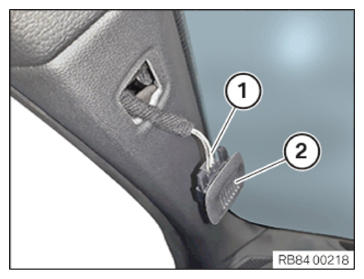

Connect the connector (1) to the hands-free microphone (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the hands-free microphone (1) on the A Pillar trim panel (2) and clip it in.

Courtesy of BMW OF NORTH AMERICA, INC.
