Installing the tailgate trim panel

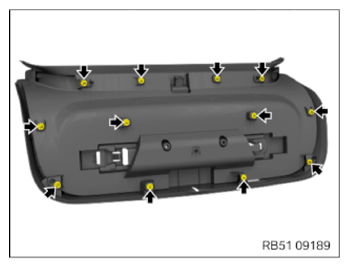

• Check the clips (arrows) on the tailgate trim panel for damage; if necessary, replace them.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide in the tailgate trim panel over the striker (1) and position it.
• Clip in the tailgate trim panel with the clips at the marked points.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Tailgate trim panel to trunk lid
  Oval-head screw	tightening torque	1.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the warning triangle (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the cover (2).
• Close the screw cap (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE POWER TAILGATE SWITCH .
• Refer to INSTALLING TRIM FOR THE SIDES OF THE REAR WINDOW FRAME TO THE LEFT AND RIGHT .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to INSTALLING THE REAR STORAGE SHELF .
