Installing the backrest covering

• Position the seat cover on the cushion.

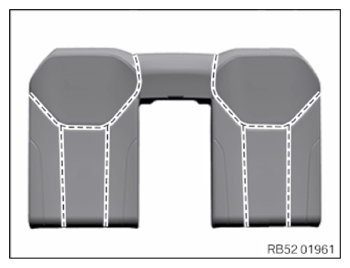

• Secure all trim wires with clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the clamps (2).

  Parts:  Clamps

• Insert the clamp (2) with the special tool  0 492 668 (52 0 050)  .
• Clasp the trim wire (3) of the cushion (1) and the trim wire (4) of the backrest covering with the clamp (2) and bend the clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION .
• Refer to INSTALLING THE FILLER PIECE .
• Refer to REMOVING REAR SEAT BACKREST .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
