Remove all valves
Preliminary work
- Refer to REMOVING THE EXHAUST TURBOCHARGER (CYLINDER HEAD REMOVED) .
- Refer to MOUNTING THE CYLINDER HEAD ON THE ASSEMBLY JIG .
- Refer to ADJUSTING THE ECCENTRIC SHAFT TO THE MINIMUM LIFT (CYLINDER HEAD REMOVED) .
- Refer to REMOVING THE TORSION SPRINGS (CYLINDER HEAD REMOVED) .
- Refer to REMOVING ALL GATES .
- Refer to REMOVING ALL INTERMEDIATE LEVERS .
- Refer to REMOVING THE INTAKE CAMSHAFT (CYLINDER HEAD REMOVED) .
- Refer to REMOVING THE SERVOMOTOR FOR THE ECCENTRIC SHAFT (CYLINDER HEAD REMOVED) .
- Refer to REMOVING THE ECCENTRIC SHAFT (CYLINDER HEAD REMOVED) .
- Refer to REMOVING THE EXHAUST CAMSHAFT (CYLINDER HEAD REMOVED) .
- Refer to REMOVE ALL ROLLER CAM FOLLOWERS .
- Refer to REMOVE ALL VALVE SPRINGS .
- Refer to REMOVING VALVE STEM SEALS .
NOTE:
RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
- B38:
Turn the special tool 0 494 366 (11 9 001) on the crank by 180°.
- B46B48:

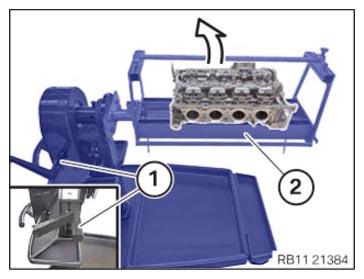

Turn the special tool 0 494 366 (11 9 001) (2) on the crank (1) by 180° in arrow direction .
- B58:

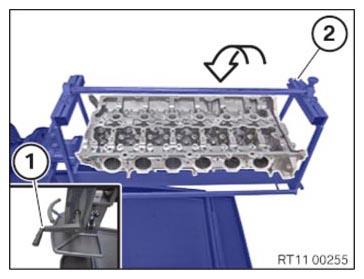

Turn the special tool 0 494 366 (11 9 001) (2) on the crank (1) by 180° in arrow direction.

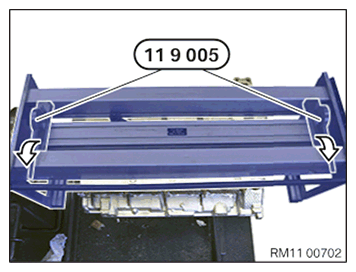

- Unlock the special tools 0 494 370 (11 9 005)
in arrow direction
.
- B38:

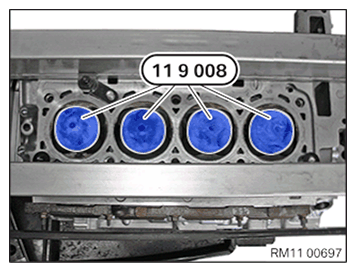

Remove the special tools 0 494 373 (11 9 008) if necessary.
- B46B48:
Remove the special tools 0 494 373 (11 9 008) if necessary.
- B58:

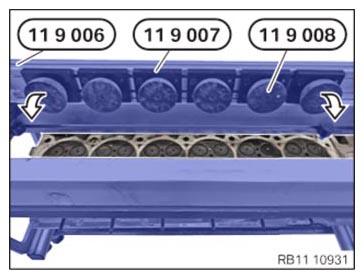

Feed out and remove the special tools 0 494 371 (11 9 006) , 0 494 372 (11 9 007) and 0 494 373 (11 9 008) in arrow direction .

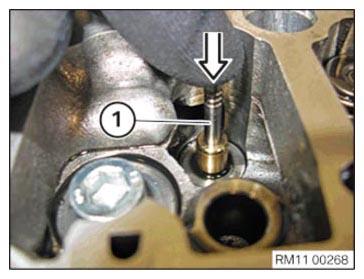

- Slide the valve stem (1)
in arrow direction
in the cylinder head.

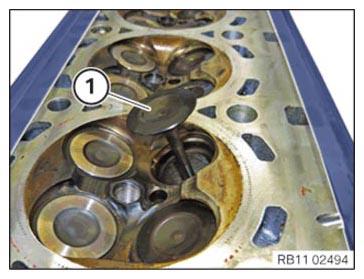

- Remove the valve (1) and position in special tool 0 495 105 (11 4 480) in order .
