Removing all intermediate levers
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 BMW M340i xDrive, 2024 BMW M340i, 2023 BMW M340i xDrive, 2023 BMW M340i, and 2022 BMW M340i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

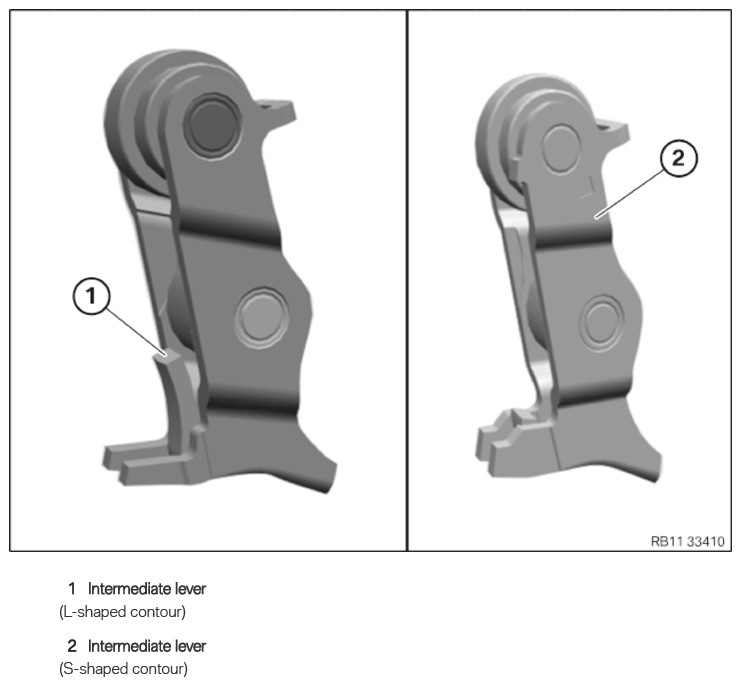

Intermediate lever
NOTE:
TECHNICAL INFORMATION
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring .
For further information on possible combinations, see the applicable BMW parts catalogue.
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring .
For further information on possible combinations, see the applicable BMW parts catalogue.
- Remove the intermediate lever (1) and arrange it in the special tool 0 495 105 (11 4 480) in order.
- Repeat the step for all intermediate levers (1)
.
