Installing the trim on the bumper panel

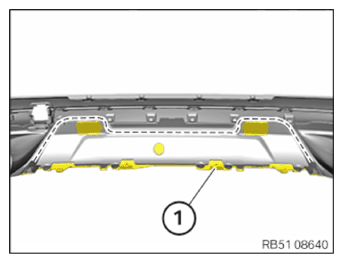

• Position the trim (1)  correctly and engage it on the detents along the dashed line.

  Courtesy of BMW OF NORTH AMERICA, INC.

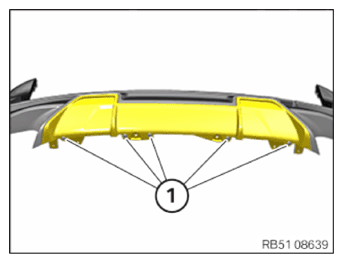

• Replace the blind rivets (1).

  Parts:  Blind rivet

• Mount the blind rivet (1) using the special tool 0 496 521 (00 2 230).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING THE REAR DIFFUSER .
• Refer to INSTALLING THE LEFT AND RIGHT REFLECTOR .
• Refer to INSTALLING TAIL LIGHT ON LEFT AND RIGHT SIDE PANEL .
• Refer to INSTALLING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL (ALL EQUIPMENT VERSIONS) .
• Refer to INSTALLING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
• Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to INSTALLING ROLLER COVER FOR LUGGAGE COMPARTMENT .
• Refer to INSTALLING THE RIGHT BOTTOM C-PILLAR TRIM PANEL (3RD ROW OF SEATS) .
• Refer to INSTALLING THE REAR DOOR SILL COVER STRIP (ELECTRICAL REAR SEAT) .
• Refer to INSTALLING RIGHT BACKREST SIDE SECTION .
