Installing the component carrier
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.

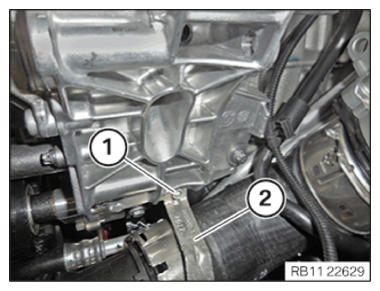

- Check centering sleeves (1) in the marked area for damage and replace centering sleeves (1) if necessary.

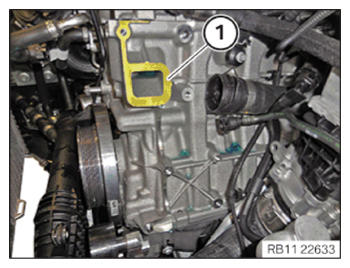

- Clean sealing surfaces (1) with special tool 0 495 102 (11 4 470)
.

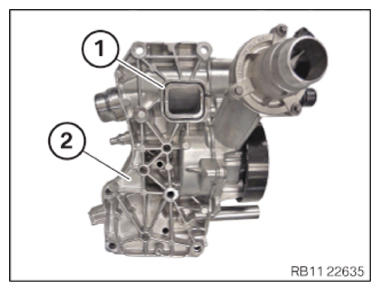

- Replace the sealing ring (1) on the component carrier (2).
Parts: Sealing ring

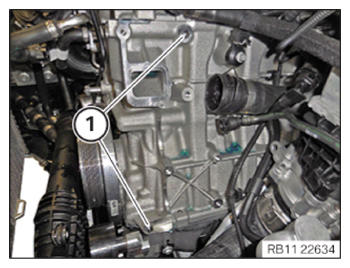

- Check sealing rings (1) for damage and replace the coolant lines if necessary.

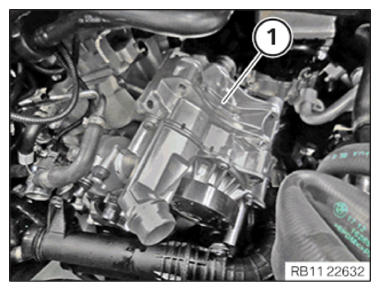

- Guide in and position component carrier (1).

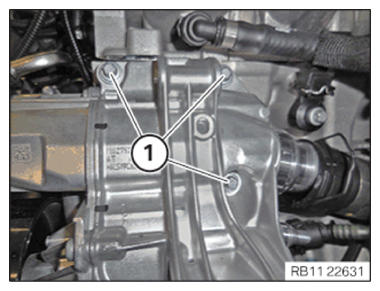

- Hand-tighten the bolts (1).
- Hand-tighten the bolts (1).

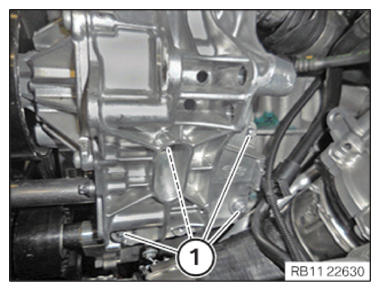

- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Coolant pump with function carrier on crankcase | ||
|---|---|---|
| M8 x 35 | tightening torque | 19 Nm |
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Coolant pump with function carrier on crankcase | ||
|---|---|---|
| M8 x 35 | tightening torque | 19 Nm |
- Insert and install the holder (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Standard screw connection M6 | ||
|---|---|---|
| M6 | Tightening torque | 8 Nm |
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

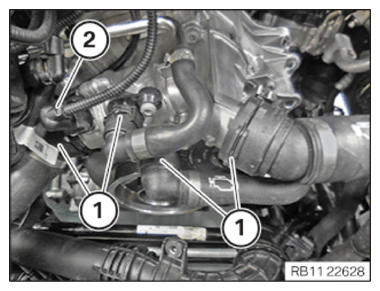

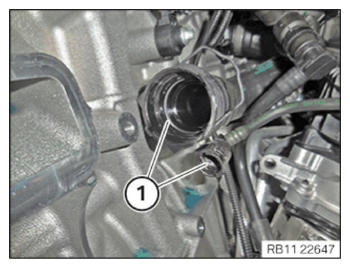

- Connect and lock the coolant lines (1).
The coolant lines (1) must engage audibly.
- Secure the clamp (2).
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

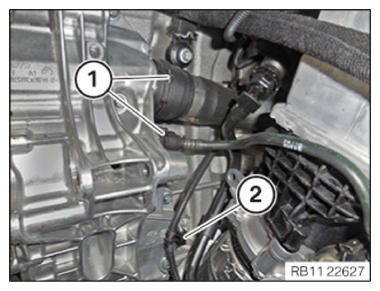

- Connect and lock the coolant lines (1).
The coolant lines (1) must engage audibly.
- Connect connectors (2) and lock.
The connector (2) must engage audibly.
