Partially install auxiliary coolant pump
Partially install auxiliary coolant pump

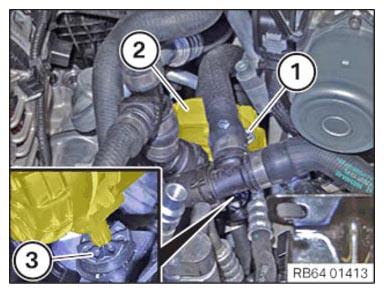

Check rubber mount (3) for damage and, if necessary, replace the rubber mount.
Guide the lower auxiliary coolant pump (2) correctly into rubber mount (3).
Tighten the nut (1) on the auxiliary coolant pump (2).
TIGHTENING TORQUE SPECIFICATION
Electric coolant pump to holder
M6
tightening torque
8 Nm
