Remount control unit for the Front Light Electronics Right (FLER)

Preliminary work

• Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
• Refer to REMOVING FRONT ORNAMENTAL GRILLE .
• Refer to PARTIALLY REMOVING BOTH FRONT WHEEL ARCH TRIMS .
• Refer to PARTIALLY REMOVING THE FRONT SECTIONS OF BOTH WHEEL ARCH COVERS AT THE FRONT .
• Refer to REMOVING FRONT BUMPER COVER .
• Refer to REMOVING RIGHT HEADLIGHT .

Remove the Front Light Electronics control unit

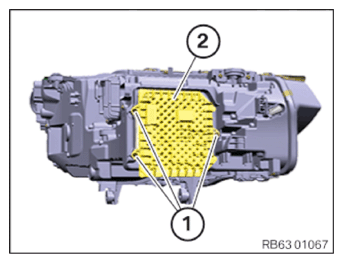

• Loosen screws (1).
• Pull the Front Light Electronics (2) control unit out of the headlights.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect connector (1).
• Remove the Front Light Electronics (2) control unit.

Install the Front Light Electronics control unit

• Check the seal (3) on the control unit for the Front Light Electronics (2) for damage and replace if necessary.
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the control unit for the front light electronics (2) in the headlight.
• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
