Remounting LED module for daytime running lights

Remove the LED module for the daytime running lights

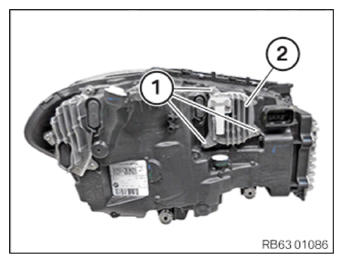

• Loosen screws (1).
• Pull LED module (2) out of headlight.

  Courtesy of BMW OF NORTH AMERICA, INC.

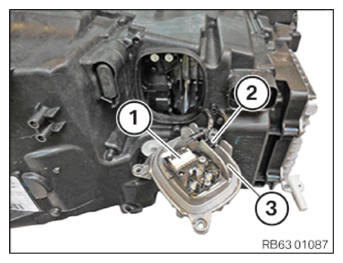

• Unlock connector (1) at LED module (2) and disconnect it.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the LED module for the daytime running lights

• When replacing the LED module for the daytime running lights: Do not  remount the guide sleeve (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the seal (1) on the LED module (2) for damage and replace as needed.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector (1) to LED module (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the LED module (2) in the headlight.
• Tighten the screws (1).

Follow-up work

• Refer to INSTALLING HEADLIGHT .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to PARTIALLY INSTALLING THE FRONT SECTIONS OF BOTH WHEEL ARCH COVERS AT THE FRONT .
• Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH TRIMS .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
• Refer to INSTALLING THE COVER PANEL IN THE ENGINE COMPARTMENT AT THE TOP LEFT .
• Refer to PROCESSING THE LED HEADLIGHT SERVICE TEST MODULE .
• Refer to ADJUSTING HEADLIGHTS .
