Remove headlight

Preliminary work

• Refer to REMOVING THE COVER PANEL IN THE ENGINE COMPARTMENT AT THE TOP LEFT .
• Refer to REMOVING FRONT ORNAMENTAL GRILLE .
• Refer to PARTIALLY REMOVING BOTH FRONT WHEEL ARCH TRIMS .
• Refer to PARTIALLY REMOVING THE FRONT SECTIONS OF BOTH WHEEL ARCH COVERS AT THE FRONT .
• Refer to REMOVING FRONT BUMPER COVER .

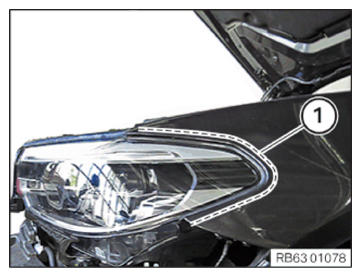

• Protect the body in area (1) with adhesive tape.

  Courtesy of BMW OF NORTH AMERICA, INC.

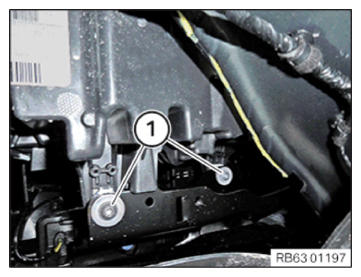

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

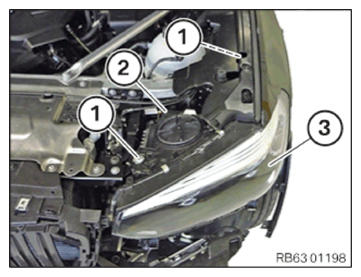

• Unlock and disconnect the connector (2) on the headlight (3).
• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

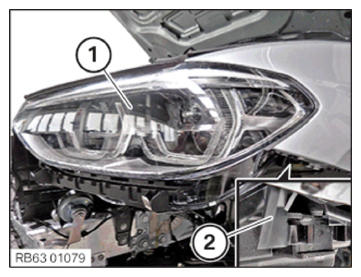

• Loosen the detent (2).
• Slightly lift the headlights (1) and feed out and remove towards the front.

Courtesy of BMW OF NORTH AMERICA, INC.
