Installing the seal for the hood gasket left and right
NOTE:
Perform the steps on the left and right side.

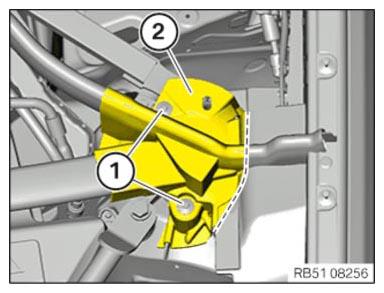

Installing the mount of the hood seal
- Position the mount (2) of the hood seal.
- Mount the expanding rivets (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
