Remove thrust field
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING UNDERBODY PLANKING ON LEFT AND RIGHT SIDE .
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
- Release the screws (1) to (3).
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

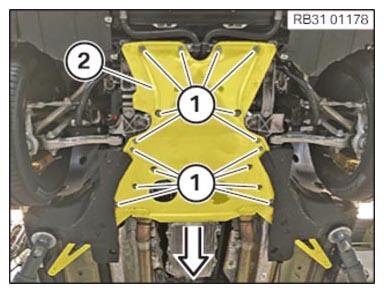

- Loosen screws (1).
- Guide stiffening panel (2) out in the arrow direction and remove it.
