Removing underbody planking on left and right side
Removing underbody planking on left and right side
NOTE:
Perform the steps on the right and left side.

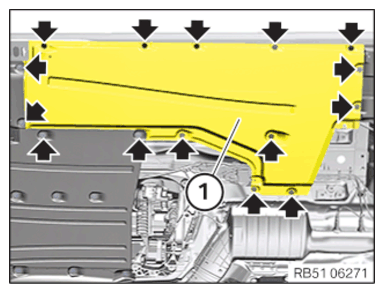

Unscrew all bolts and nuts (arrows).
Remove the underbody planking (1).
Courtesy of BMW OF NORTH AMERICA, INC.
