Installing front brake pads

Check

• Is there an arrow (1)  on the new brake pads for the direction of rotation?

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Yes, an arrow (1)  is present.

  Measure

  • Brake pads must be installed in the direction of rotation.
• Insert and position the brake pads in the brake caliper.
• Place the brake caliper on the stud bolts and position the brake caliper correctly.
• Replace nuts (1)  .

  Parts:  Nuts

• Install the nuts (1)  and tighten.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Brake caliper on stud bolt of the front swivel bearing
  M12 Replace nuts.	Tightening torque	95 Nm

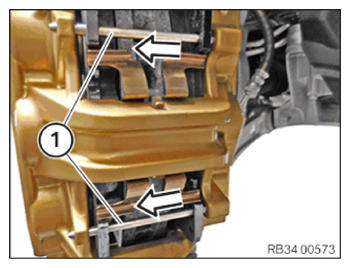

• Push the locking pins (1)  in the arrow direction up to the stop.

  If necessary, press the brake pads against the spring force of the retaining spring.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Hook brake hose (1)  into holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT BRAKE PAD WEAR SENSOR .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to COMMISSIONING OR BEDDING IN (BRAKE) OF NEW BRAKE PADS AND DISCS (HIGH BRAKE) .
